Full Automatic Drinking Pure Water Washing Filling Capping 3 in 1 Machine

  • 1 - 1 Sets
    $28,000.00
  • >=2 Sets
    $25,000.00
Power:
3KW
Model Number:
CGF24-24-8
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
Packaging Type:
Cartons, Cans, Bottles, Bags
Packaging Material:
Plastic, Paper, Glass
Type:
Filling Machine
Applicable Industries:
Food & Beverage Factory, Food Shop, Food & Beverage Shops
Condition:
New
Application:
Food, Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V/220V 50HZ
Place of Origin:
Jiangsu, China
Brand Name:
SKYM
Dimension(L*W*H):
3550mmx2650mmx2700mm
Weight:
6500
Certification:
CE/ISO9001-2015
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Automatic
Beverage Type:
water
Capacity:
6000-8000BPH
Bottle Type:
PET Plastic Bottle
Bottle Size:
250~2000ml
Bottle Diameter:
50~110mm
Bottle Height:
160~320mm
Certificate:
Ce,ISO9001-2015
Control:
PLC(Simens/Mistsubishi)
Motor:
Simens
Electrical Parts:
Schneider/Mitsubishi
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden pack
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

Products Introduction of Water bottling machine/Drinking filling machine/PET bottle filling line:

Products Introduction of This Automatic Monobloc Mineral Water Bottling Plant/Production Line adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping.Most elements of the electrical system employ famous brand advanced products.Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantages of good abrasive resistance,high stability,low failure rate,etc The quality of the equipment reaches the international advanced level.
Technicial Parameter
Machine List of Water Bottling Machine/Production Line
Model
Washing heads
Filling heads
Capping heads
Capacity(b/h)500ml
Motor power(kw)
Overall dimension(mm)
CGF14-12-5
14
12
5
3000-5000
1.5
2100*1400*2500
CGF16-16-5
16
16
5
6000-8000
2.2
2460*1720*2650
CGF24-24-8
24
24
8
8000-12000
3
3100*2100*2650
CGF32-32-10
32
32
10
12000-15000
4
3500*2500*2650
CGF40-40-12
40
40
12
16000-20000
7.5
4600*1800*2650
CGF50-50-15
50
50
15
24000-26000
11
5800*4500*3400
CGF60-60-15
60
60
15
26000-30000
12
6500*4500*3400
CGF72-72-18
72
72
18
30000-36000
14
6800*4500*3700
Detailed Images

Rinser

  1. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.

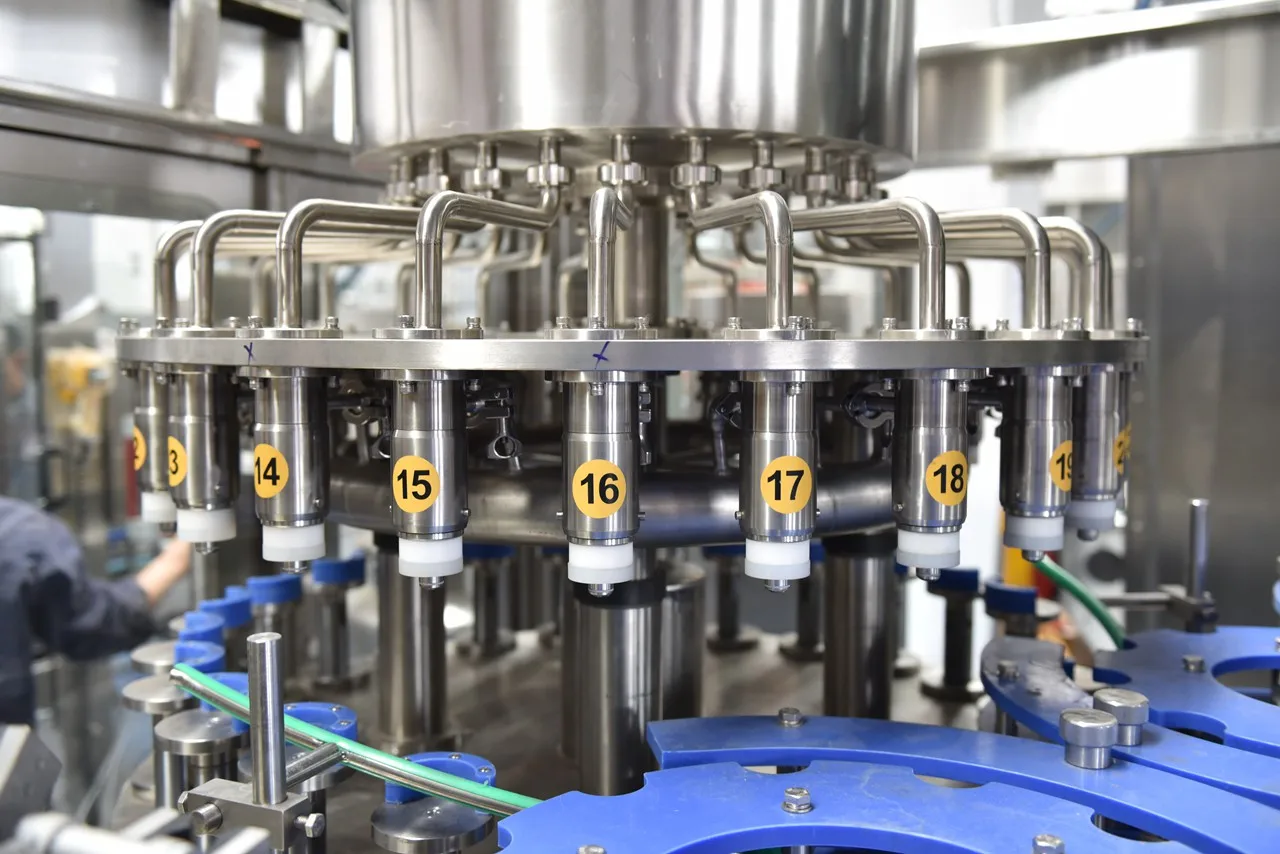

Filler

  1. Rotary wheel fully made of stainless steel SUS 304.
  2. Gravity filling method.
  3. Filling valves are made of SUS316L.

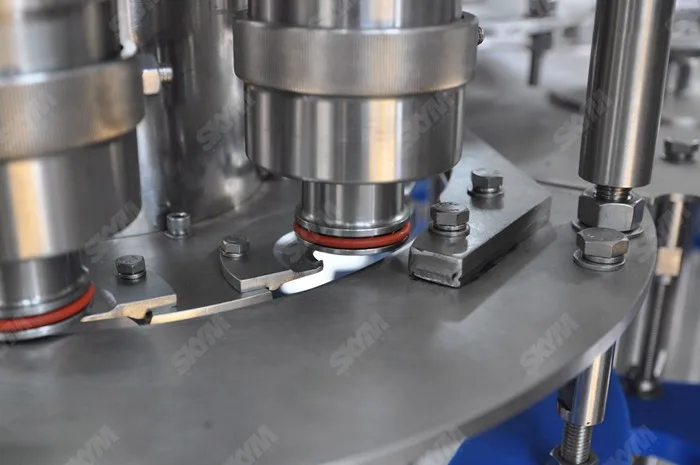

Capper

Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock.
Our company
Company certificate
Service
1.Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.

2.Training
Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3.Quality guarantee
We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.

​​​​​​​4.After sales
(1)After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
(2)After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.

FAQ
Q1:What's your guarantee or the warranty of the quality if we buy your machines?
A1:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
      Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.

Q2:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing
and teaching your technicians how to run the machines.

Q4:What's the delivery time?
A4:30-45 days after the T/T deposit or L/C.

Q5:What's min order quantity?
A5:1 unit
