Complete Fruit Juice Production Line / Juice filling machine

  • 1 - 1 Sets
    $28,000.00
  • >=2 Sets
    $25,000.00
Power:
1.87KW
Model Number:
RCGF series
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
Packaging Type:
Barrel, Bottles, Cans, Cartons, Pouch, Stand-up Pouch
Packaging Material:
Glass, Plastic, Aluminum Foil.nylon
Type:
Filling Machine
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Brazil, Indonesia, Malaysia, UAE, Nigeria
Showroom Location:
Indonesia, South Africa, Nigeria, Malaysia
Condition:
New
Application:
Beverage, Food, bottled juice water
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
Sky Machine
Dimension(L*W*H):
2300*1680*2650mm
Weight:
2600KG
Certification:
CE,ISO,SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Key Selling Points:
Automatic
Capacity:
3000-28000BPH
Bottle Material:
PET
Usage:
Mineral Water,Pure Water,Beverage,Oil,Carbonated Drinks,etc.
Bottle type:
330~1500ml
Machine material:
304/316 S.S Material
Control:
PLC (SIEMENS)
Processing:
Washing,filling,capping
Processing Types:
Normal pressure filling
Product Certification certification
CE Certified.
Valid from 2018-04-03 until 2023-04-02
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
SHANGHAI
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Product Application

Complete Fruit Juice Production Line/Apple Juice Making Equipment/ Juice filling machine prices is introduced advanced foreign technology such as washing, filling, capping technology. It is used in filling hot fruit juice, tea and other beverage, if you replace some parts, it can also be used in filling normal temperature filling.
Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; Canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough...
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

7. Equipped with a constant temperature system, temperature controlled and circumfluenting automatically.

Complete Fruit Juice Production Line/Apple Juice Making Equipment/ Juice filling machine prices
Brand
SKYM
Capacity
Customized from 3000BPH to 25000BPH@500ml
Rinsing Nozzles
14/16/24/32/40/50/60
Filling Valves
14/16/24/32/40/50/60
Machine Material
304/316 s.s Material
Bottle Diameter
50-100mm
Bottle Height
170-320mm
Control System
Siemens PLC
Electricity Components
Schneider/Omron
Operation
Automatic
Application
bottled/can/beer/juice/barrel/bucket/carbonated filling machine
certification
CE,SGS,ISO9001,ROHS
Technical Parameter
Model
RCGF
14-12-5
RCGF
16-16-5
RCGF
24-24-8
RCGF
32-32-10
RCGF
40-40-10
RCGF
50-50-15
RCGF
60-60-15
Bottle specifications
Φ=50-100 H=170-320(330~1500ml)
Capacity
(500ml/bottle/hour)
3000-4000
5000-7000
6000-8000
8000-10000
12000-15000
15000-18000
18000-25000
Pressure(MPa)
0.25-0.3
Motor power(kw)
2.42
3.12
3.92
3.92
5.87
7.87
11.37
Overall dimension(L*W*H)mm
2360x1770x2700
2760x2060x2700
2800x2230x2700
3550*2650*2700
4700*3320*2700
5900*4150*2700
6700*5160*2700
Weight(Kg)
2600
3500
4800
6500
10000
12000
15000


Certifications

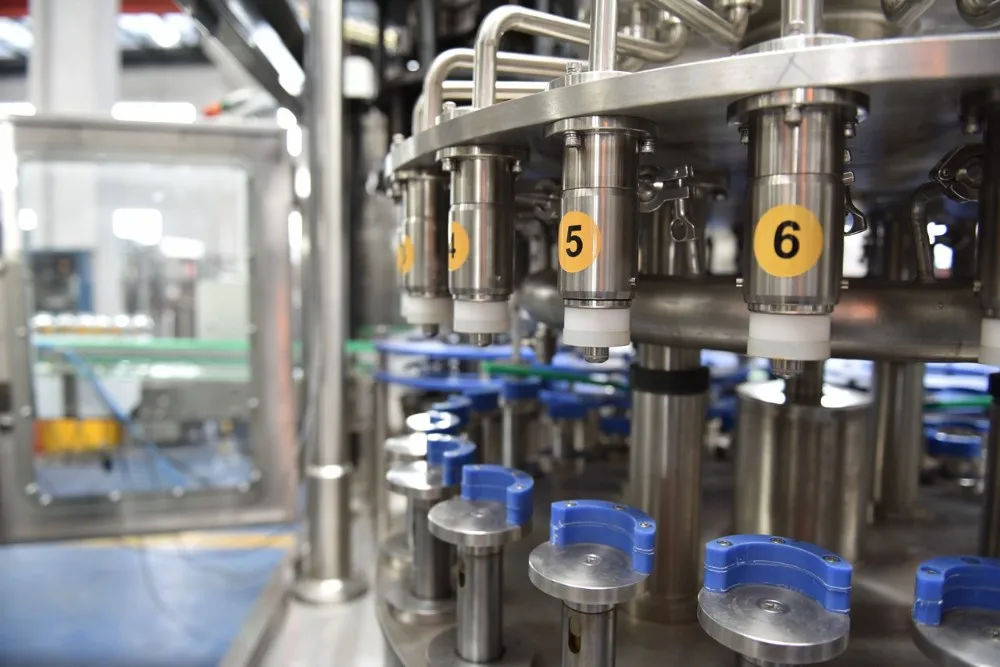

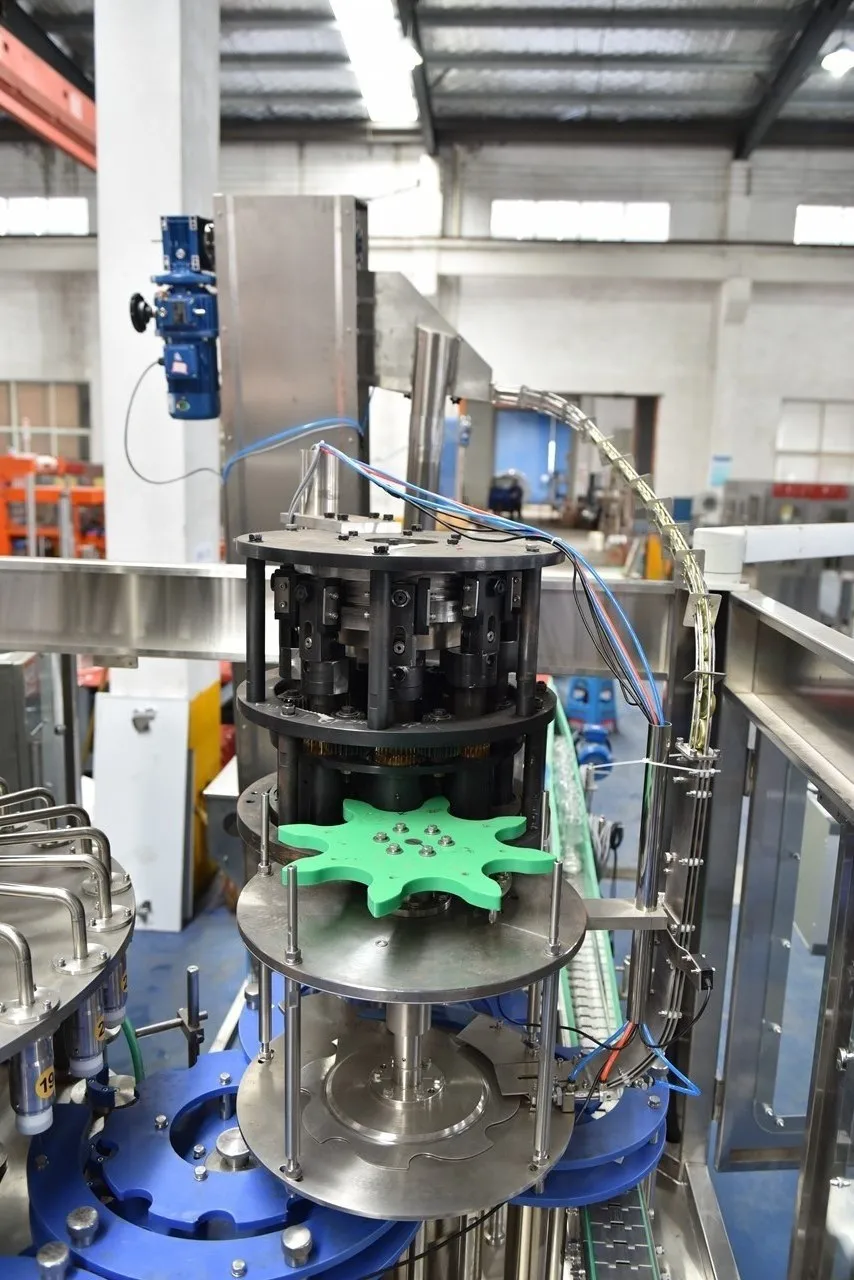

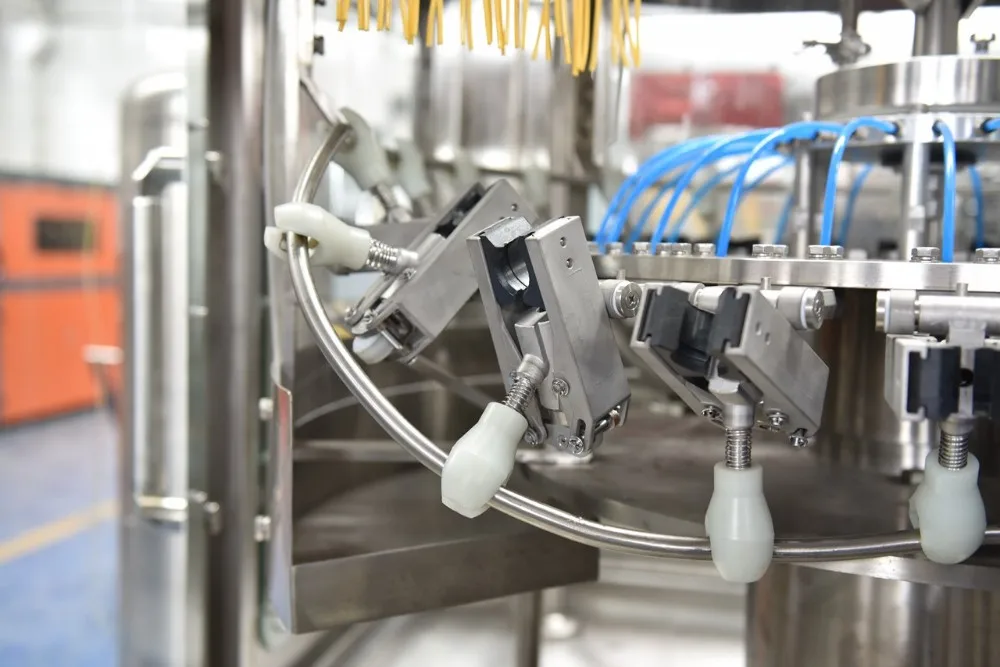

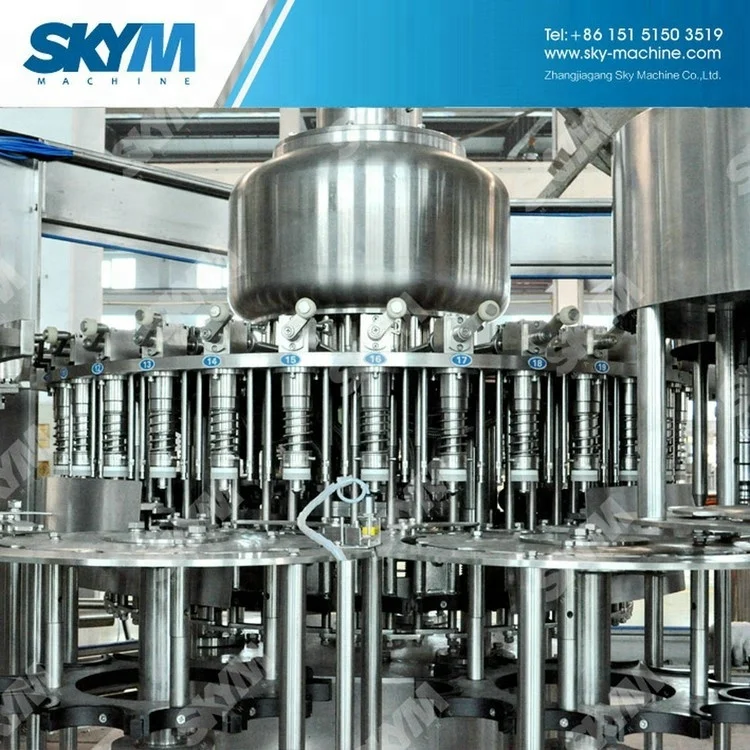

Detailed Images
Our Service

1.Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.

2.Training
Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3.Quality guarantee
We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.

4.After sales
(1)After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
(2)After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.

Our Company
FAQ

Q1:What's your guarantee or the warranty of the quality if we buy your machines?
A1:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
      Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich                       experience.

Q2:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing
and teaching your technicians how to run the machines.

Q4:What's the delivery time?
A4:30-45 days after the T/T deposit or L/C.

Q5:What's min order quantity?
A5:1 unit
