Factory price and good quality automatic 5 gallon barrel water filling machine

  • >=1 Sets
    $5,000.00
Power:
5.3KW
Model Number:
QGF150
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
Packaging Type:
Barrel, Bottles, Cans, Gallons
Packaging Material:
Plastic
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Jiangsu, China
Brand Name:
Sky Machine
Voltage:
220V/380V
Application:
Beverage, Chemical, Food
Weight:
800kg
Automatic Grade:
Automatic
Certification:
CE,ISO,SGS
Driven Type:
Hydraulic
Dimension(L*W*H):
by order
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops
Key Selling Points:
High Productivity
After Warranty Service:
Online support, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Type::
filling machine
Bottle size:
3gallon~5gallon
Capacity:
100BPH-2000BPH
Control:
PLC
Processing:
Washing,Filling,Capping
Specific Use::
pure water filling
Appliacation Bottle:
Plastic Bottle
Material::
Stainless steel 304 / 316L
Export Market:
Global
Product name:
5 Gal Water Filling Machine
Supply Ability
Supply Ability:
30 Set/Sets per Month 5 Gallon barrel water filling machine
Packaging & Delivery
Packaging Details
wooden cases
Port
SHANGHAI
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

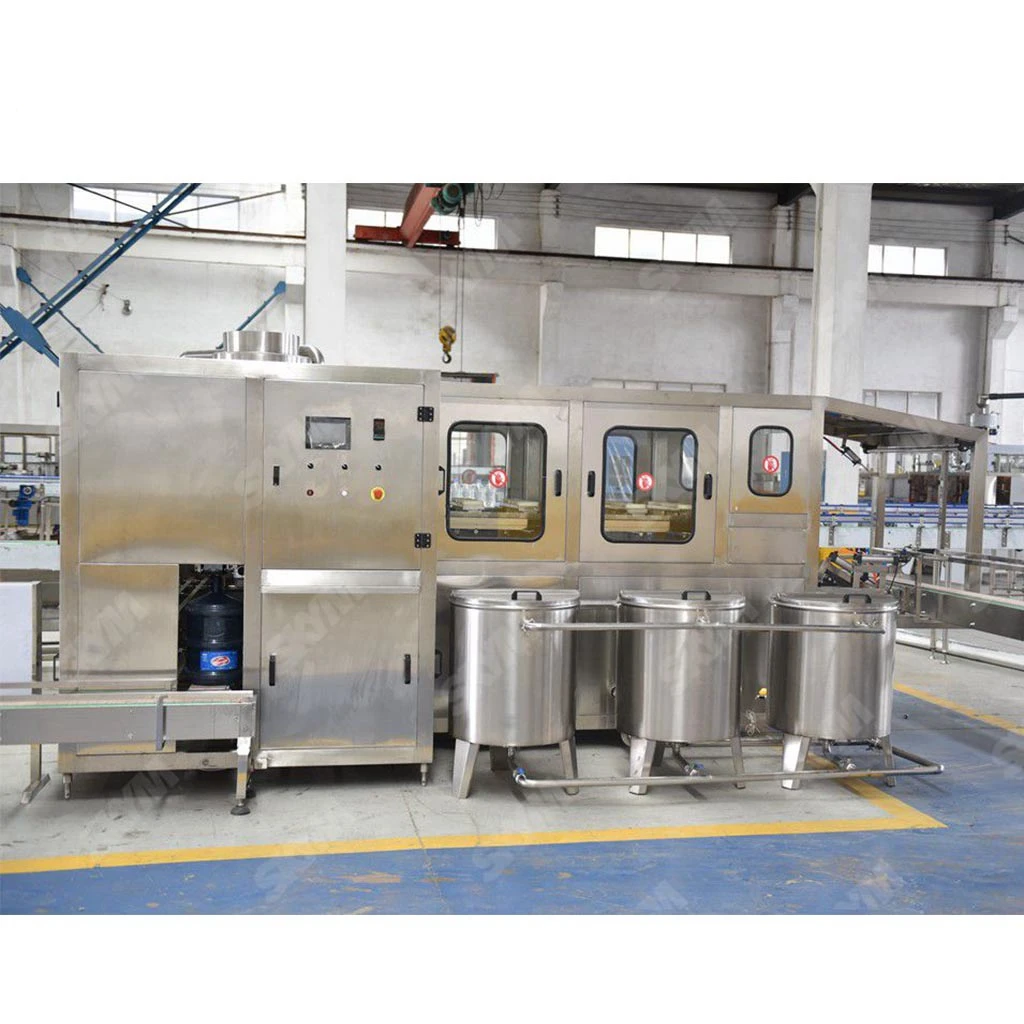

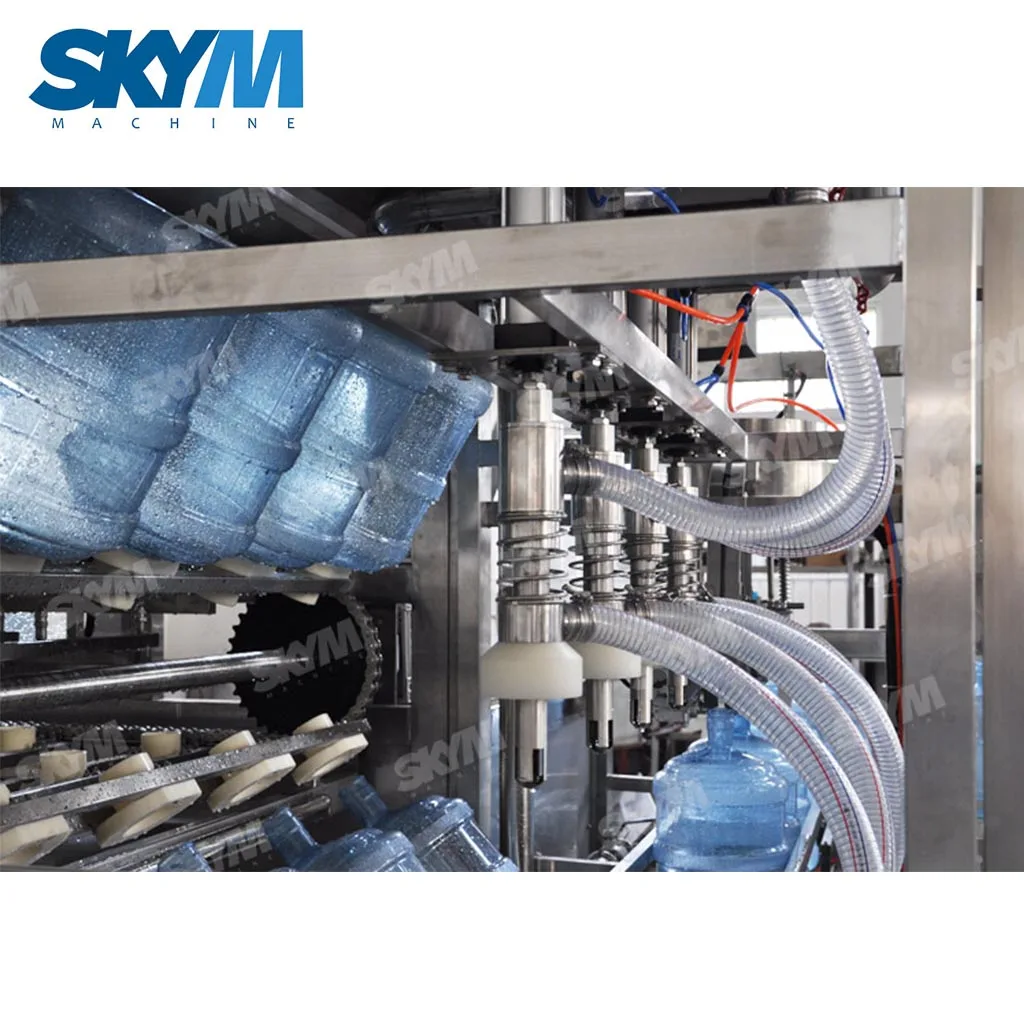

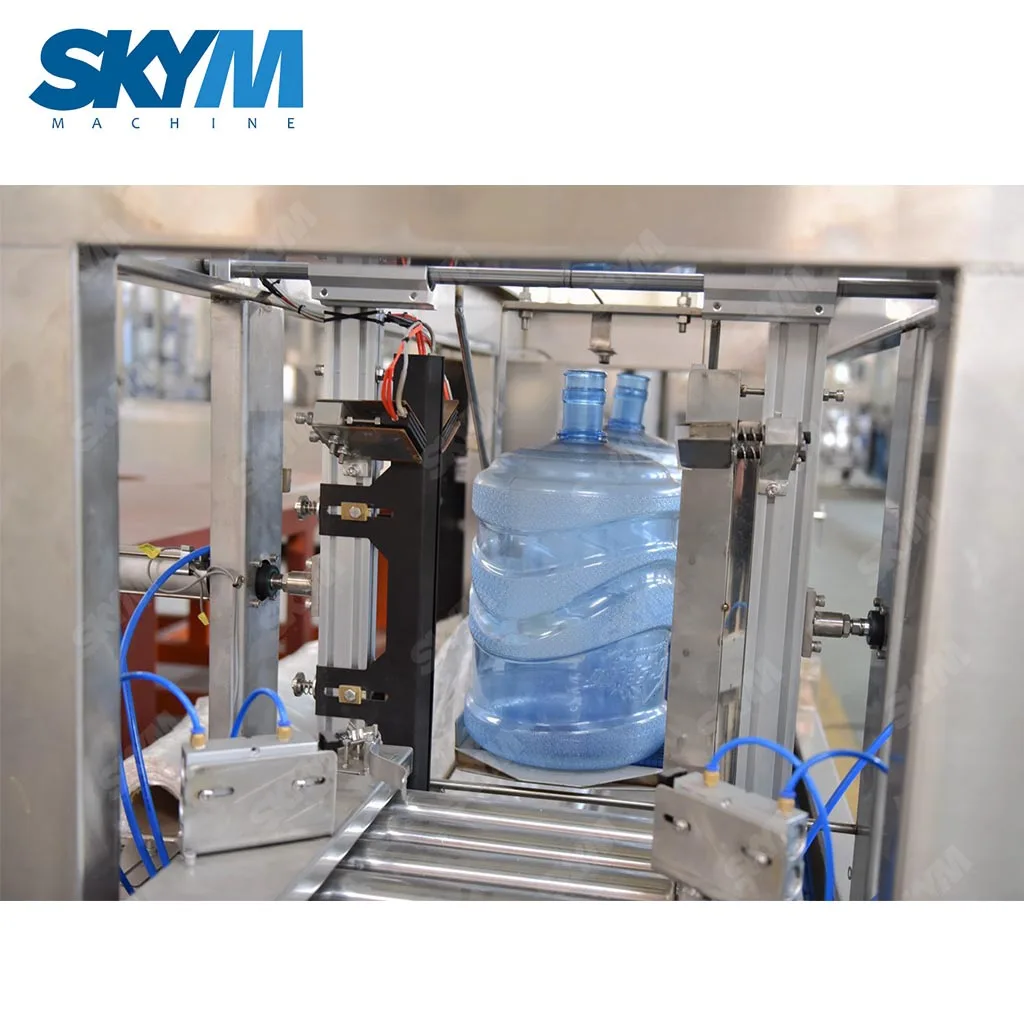

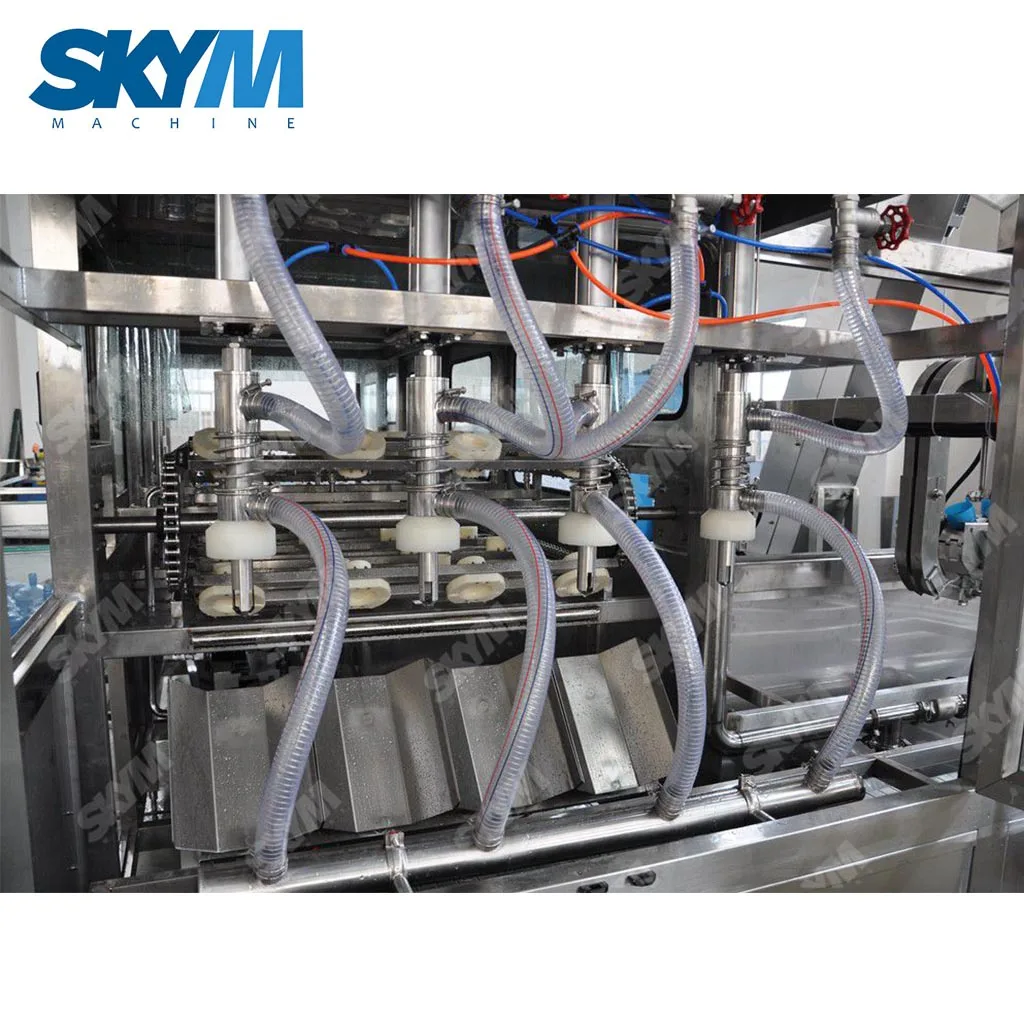

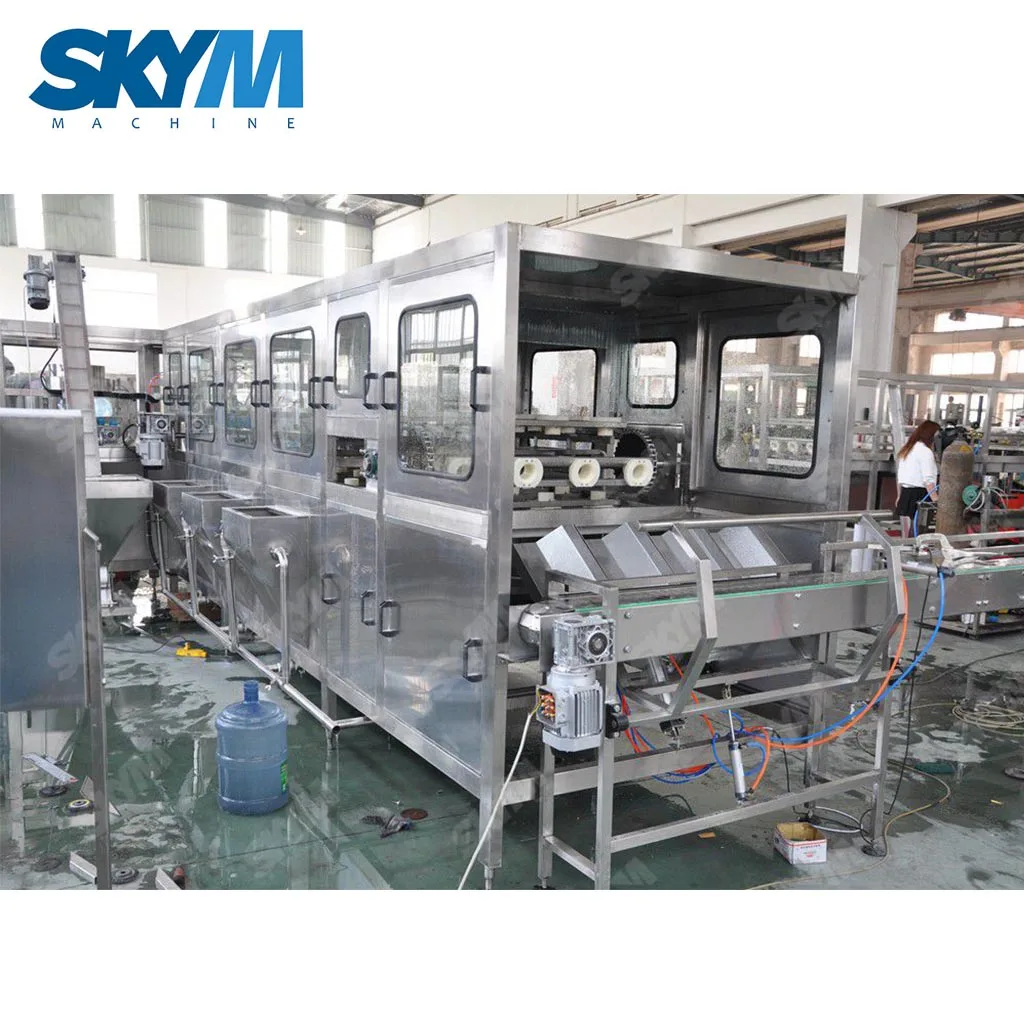

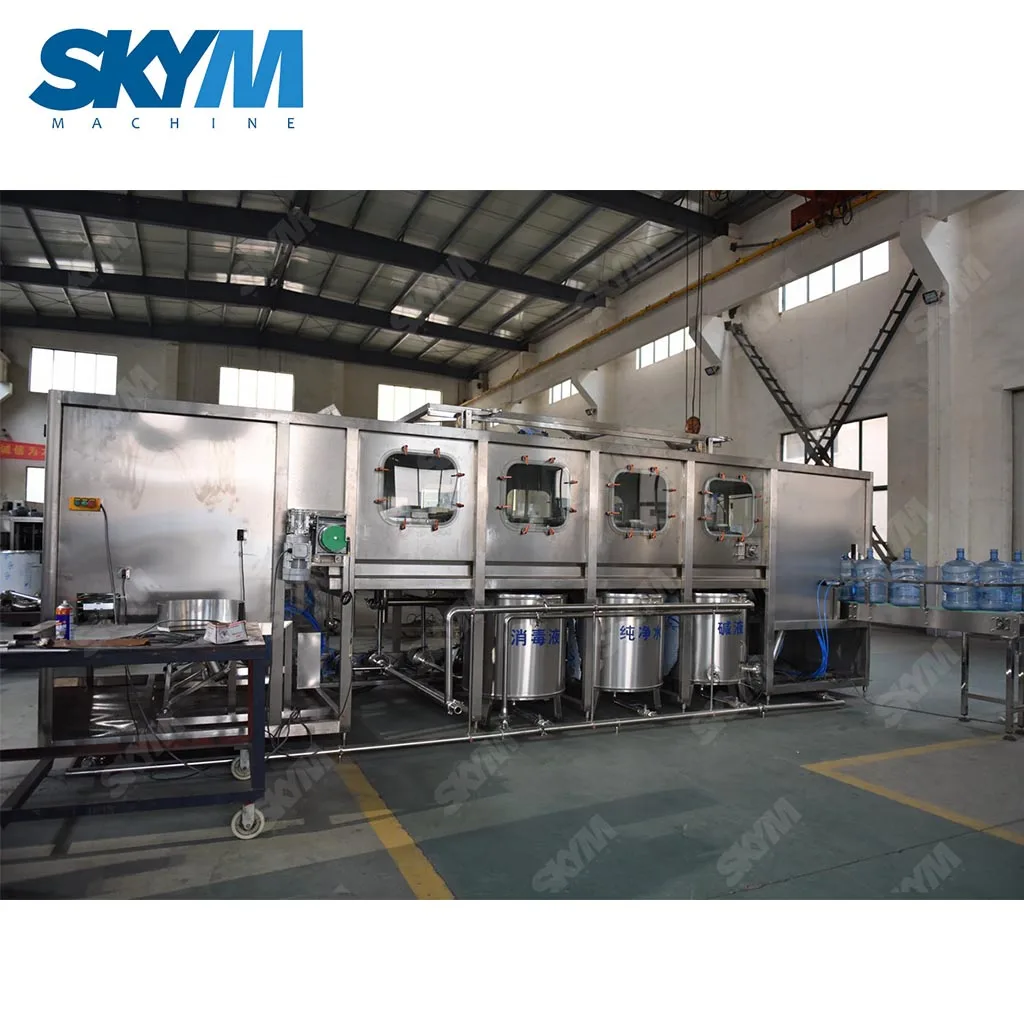

Product Description:This filling line specially for 3-5 gallons barreled drink water,with type QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200,It intergrates bottle washing,filling and capping into one unit ,

In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel

automatically ,this line equips with water spraying device in order to

ensure those caps sterilizer and clean .it also can automatically carry outbarrel ,washing,sterilizing,filling,capping,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together .



ModelQGF-150QGF-300QGF-450QGF-600QGF-900
Production capacity150BPH300BPH450BPH600BPH900BPH
Filling nozzle12248
Power supplyMain motor5.3kw5.3kw8kw10.6kw15.9kw
Heating6kw6kw6kw6kw9kw
Compressed airair pressure0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa
consumption0.18m3/min0.18m3/min0.5m3/min0.8m3/min1.2m3/min
Alkali liquorinside washing18s*118s*118s*218s*218s*2
Recycling waterinside rinsing18s*218s*218s*118s*118s*1
outside washing18s*118s*118s*118s*118s*1









Company Information

Packaging & Shipping

Our Services







1.Installation, debug After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.
2.Training Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality guarantee We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.
4.After sales 1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician. 2,After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
