Automatic Liquid Carbonated Soda Beverage Water Glass Bottle Beer Washing Capping Filling Packing Bottling Machine

  • 1 - 1 Sets
    $22,000.00
  • >=2 Sets
    $20,000.00
Power:
2.2KW
Model Number:
DCGF 14-12-5
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
Packaging Type:
Barrel, Bottles, Cans, Cartons, Pouch, Stand-up Pouch
Packaging Material:
Glass, Plastic, Glass
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
SKY Machine
Voltage:
Customized
Application:
Beverage, Food, Other
Weight:
500kg
Automatic Grade:
Automatic
Certification:
CE ISO
Driven Type:
Hydraulic
Dimension(L*W*H):
2400*1770*2700
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Construction works , Food & Beverage Shops, Advertising Company
Key Selling Points:
Long Service Life
Function:
Washing Filling Capping
Filling material:
Flowing Liquid
Processing Types:
Automatic Cup Filling Sealing Machine
Usage:
Beverage Packaging
Bottle type:
Glass Botte
Material:
Stainless Steel
Capacity:
2000-30000bph
Control System:
PLC Touch Screen
Product Certification certification
CE Certified.
Valid from 2018-04-03 until 2023-04-02
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden cases
Port
SHANGHAI
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

This BGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce beer filling machine. The BGF Wash-filling-capping 3-in-1unit:beer Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.


1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.

Main Technical Data
Model
BGF14-12-5
BGF16-16-5
BGF24-24-8
BGF32-32-10
BGF40-40-12
Capacity(BPH)
2500
3000
5000
8000
10000
Suitable to Bottle Shape
ø=50-120 H=160-320
Power Supply(KW)
2.02
2.42
3.12
3.92
3.92
Overall dimension(L*W*H) mm
2400*1770*2700
2800*2060*2700
2950*2230*2700
3700*2650*2700
4850*3320*2700

Water treatment

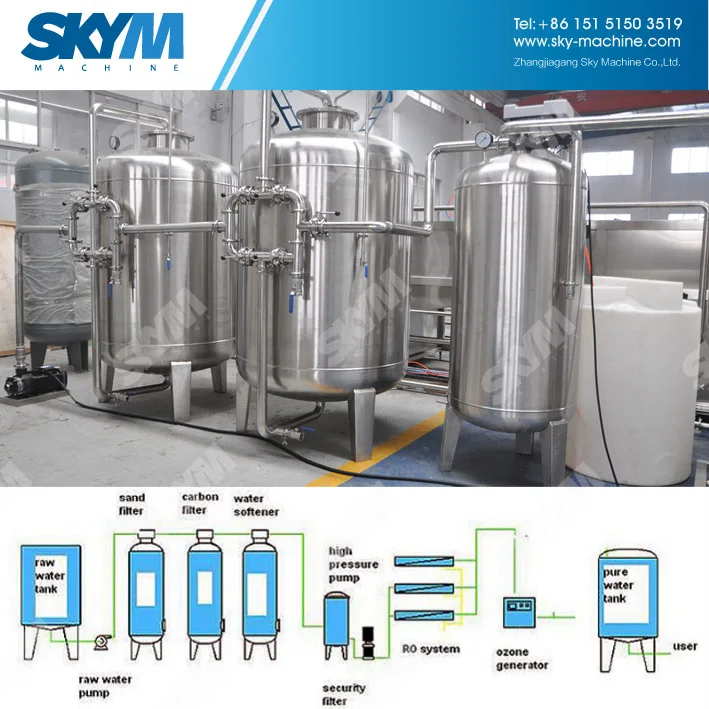

This water treatment equipment includes multi-media filter, active carbon filter, sodium ion filter, precision filter, RO equipment, UV stenilizer, Ozone generator, etc. It's mainly used for get pure water, mineral water, pre-treated water for all kinds of beverage. It can effectively get rid of suspended matters, smell and color in raw source water, meanwhile, it also filter substance, such as organics, microorganism, chloride, colloidal particles, and residual chlorine. Besides, this system filters heave metal ion to reduce the hardness of the water to make the water quality fully meet the drinking water standard.

Labeling machine

As the machine uses a combination of cutting-edge technologies, and high-performance components-ultia small inertia servo motor, the system by Siemens programmable logic controller professional closed-loop control of servo motors, the use of advanced human-computer interface system implement human and computer's conversation. During the host was rushed to the label speed control process, it can reach 0.01m/min accuracy class, rather than the general machinery of 1m/min, a single machine in this regard to improve both the accuracy class; and on this side, the machine use ultra-small inertia servo motor, the speed between 0.5-40m/minute can be adjusted any number under the large-scaie to meet your production line speed, so an to achiebe real High-speed labeling.

Shrink wrapping machine

Automatic bottle shrink wrapping machine is suitable for wrapping of such products as pop-top,mineral water ,bottles.beer,drinks etc without bottom tray ,working with PE film shrink tunnel to pack the goods perfectly ,the whole production process adopts the germany advanced technics ,and the main parts are imported from international famous companies ,Capacity stable and using long-time ,it consists of seven actuating motor ,through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine

Certifications
Exhibition Show
Our Company
Our Service

1.Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.

2.Training
Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3.Quality guarantee
We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.

4.After sales
1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.


2,After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.

FAQ

1.Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.

2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.

3.How can i know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.

4.What certificates you can provide?
Our factory provide the CE,SGS,ISO,and according to some countries,we also can provide the PVOC, COC,SONCAP...etc.
