Straight Line Mineral Water Filling Production Line

  • 1 - 1 Sets
    $40,000.00
  • 2 - 2 Sets
    $38,000.00
  • >=3 Sets
    $37,000.00
Power:
3.5KW
Model Number:
CGF16-16-5
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Barrel, Bottles, Cans, Cartons, Pouch, Stand-up Pouch
Packaging Material:
Glass, Plastic
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
Sky Machine
Voltage:
Customized
Application:
Beverage, Food, bottled mineral water
Weight:
3500KG
Automatic Grade:
Automatic
Certification:
CE,ISO,SGS
Driven Type:
Mechanical
Dimension(L*W*H):
2850*2150*2700mm
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
Key Selling Points:
Competitive Price
Capacity:
6000-8000BPH
Bottle Material:
PET
Usage:
Mineral Water,Pure Water,Beverage,Oil,Carbonated Drinks,etc.
Bottle size:
200ml-2000ml
Machine material:
304/316 S.S Material
Control:
PLC (SIEMENS)
Processing:
Washing,filling,capping
Processing Types:
Normal pressure filling
Product Certification certification
CE Certified.
Valid from 2018-04-03 until 2023-04-02
Supply Ability
Supply Ability:
10 Set/Sets per Month Automatic Monobloc Mineral Water Bottling Plant/Production Line
Packaging & Delivery
Packaging Details
wooden cases
Port
SHANGHAI
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Description
Characteristics of Automatic Monobloc Mineral Water Bottling Plant/Production Line :

1.Using the wind sent access and move wheel in the bottle directly connected technology;Canceled screw and conveyor chains,this
enable the change the bottle-shaped become easier.
2.Bottles transmission adopt clip bottleneck technology,bottle-shaped transform not need to adjust the equipment level,only change
relater the curved plate,wheel and nylon parts is enough.
3.The specially designed stainless steel bottle washing machine clip is solid and durable,no touch with the screw location of
bottle mouth to avoid secondary pollution.
4.High-speed large gravity flow valve filling valve,filling fast,filling accurate and no liquid lose.
5.Spiraling decline when output bottle,transform bottle shape shape no need to adjust the height of conveyor chains.
6.Host adopt advanced PLC automatic control technology,the key electrical components from famous company such as Japan,France
Schneider
Detailed Images

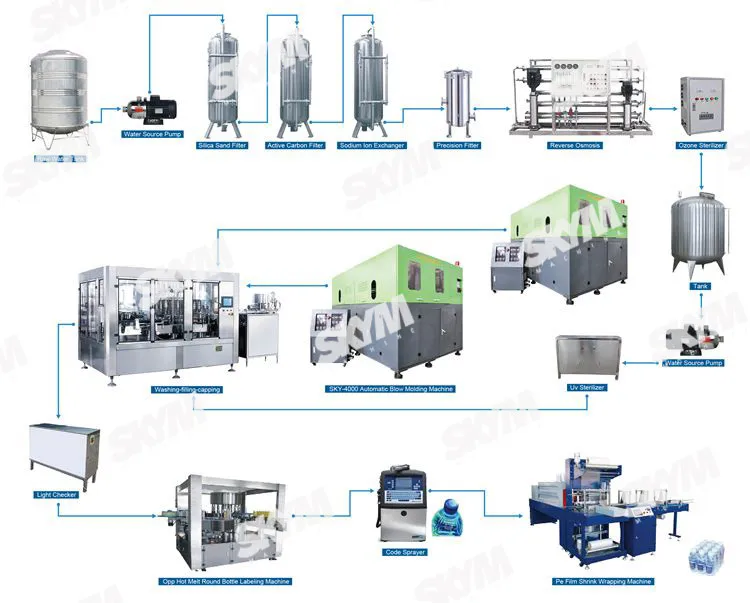

Flow Chart of Automatic Monobloc Mineral Water Bottling Plant/Production Line
A.Bottle production line PET Resin-Injection moulding machine-Bottle blowing machine-PET bottle
B.Water treatment system Raw water-Pump-Silica sand filter-Carbon filter-Water softer-Reverse Osmosis-UV sterilizer-Ozone
generator-Finished water tank
C.Filling&Packing part Bottle unscrambler-Air conveyor-Washing,filling,capping 3 in 1 machine-Light checker-Blow dryer-Dater
printer-Labeling machine-Packing machine-Stock
Rinser
Spring cramps are used in the bottle washing process.The empty bottles can be turned over 180 along the conveying rail.There are
two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sky original and double-opened bottle clip.Bottle clip lock the bottleneck, the material of bottle clip is
SUS304,which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle.The extrusive droplet with 15 angleensures to wash all side of the bottle, and
can save the water.Made of stainless steel of superior quality.Drinking water machine equipped with bottle jam protection device.

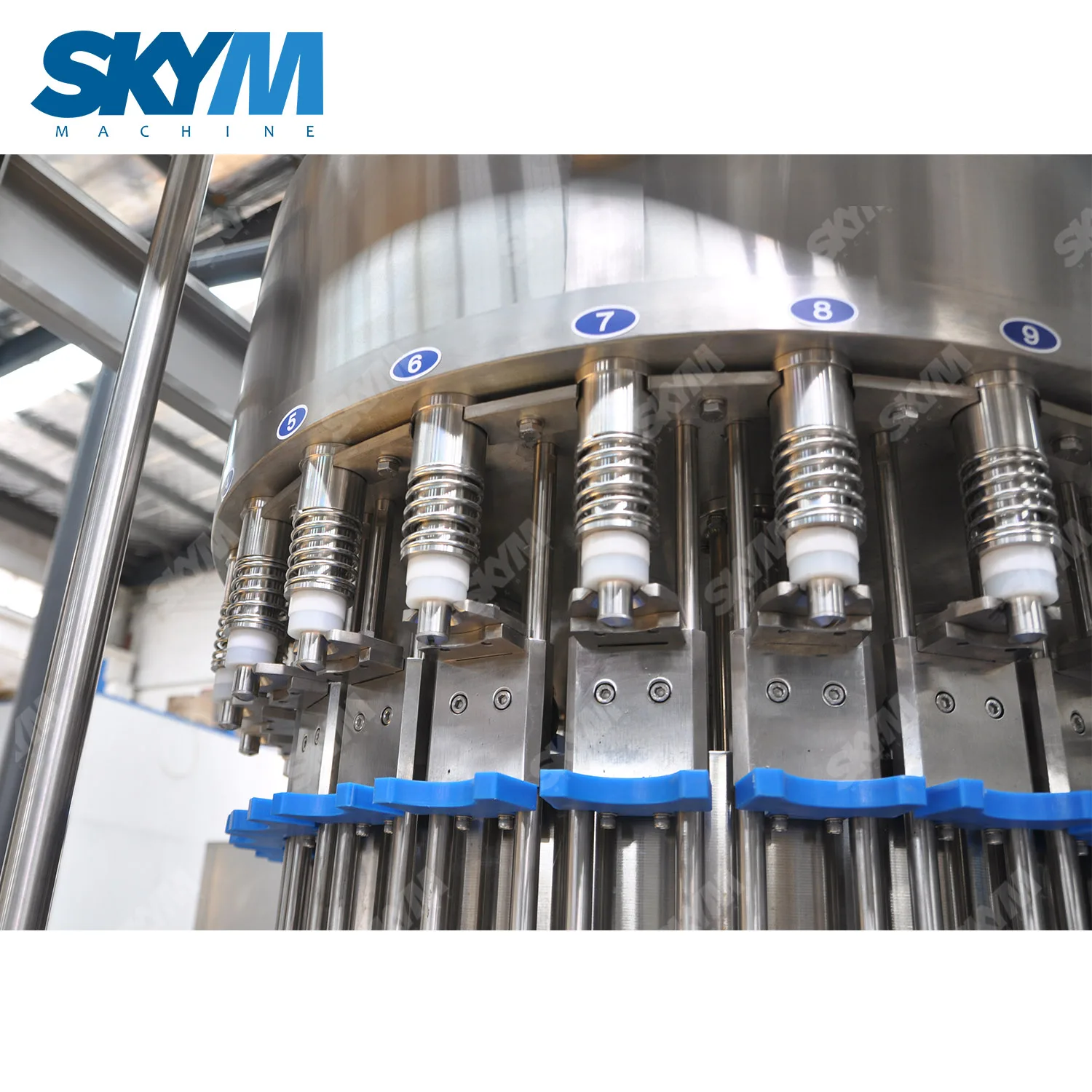

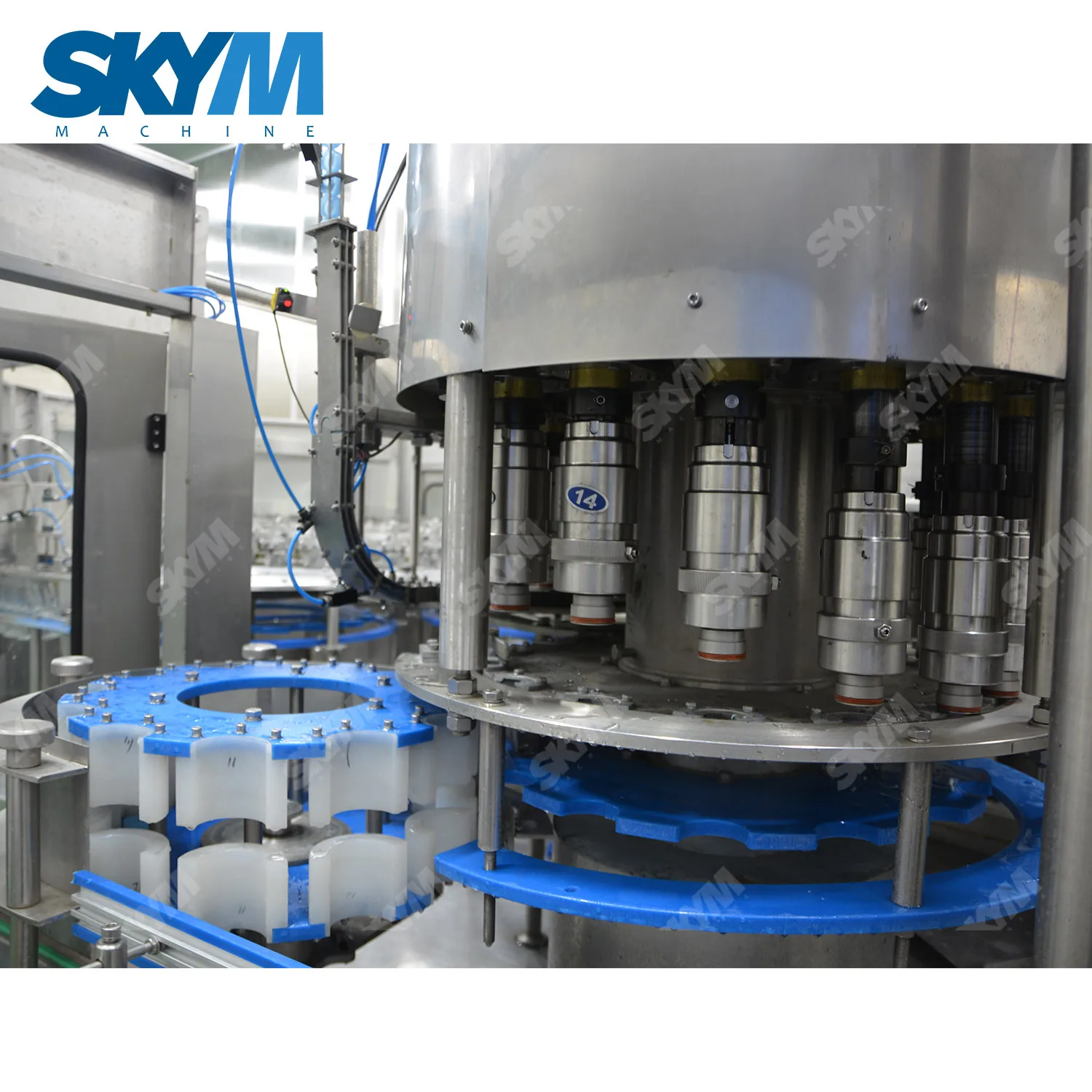

Filler
Automatic Monobloc Mineral Water Bottling Plant/Production Line design of filling structure is reasonable and hygiene dead angle,

the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to
bottle design).The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve elevator,
after filling valve contact the bottle neck, it starts to fill.Bottle is conveying by the wheel in the filling part.
Capper
Screw capping ,machine is most precision part in the 3-1 machine ,it has a big influence to the goods stability and reliability of

the screw capping has following feature.
1) Sky import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine.The
magnetic torque is used foe screw capping.The power of screw capping can be adjusted without steps.The power of the screw capping
can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part, it installed photoelectrical control, when it has no cap, or the cap is bad, the machine will stop
automatically.
Size Information
Related Products
Plastic Injection Molding Machine
Water Treatment System
PET Bottle Blow Molding Machine

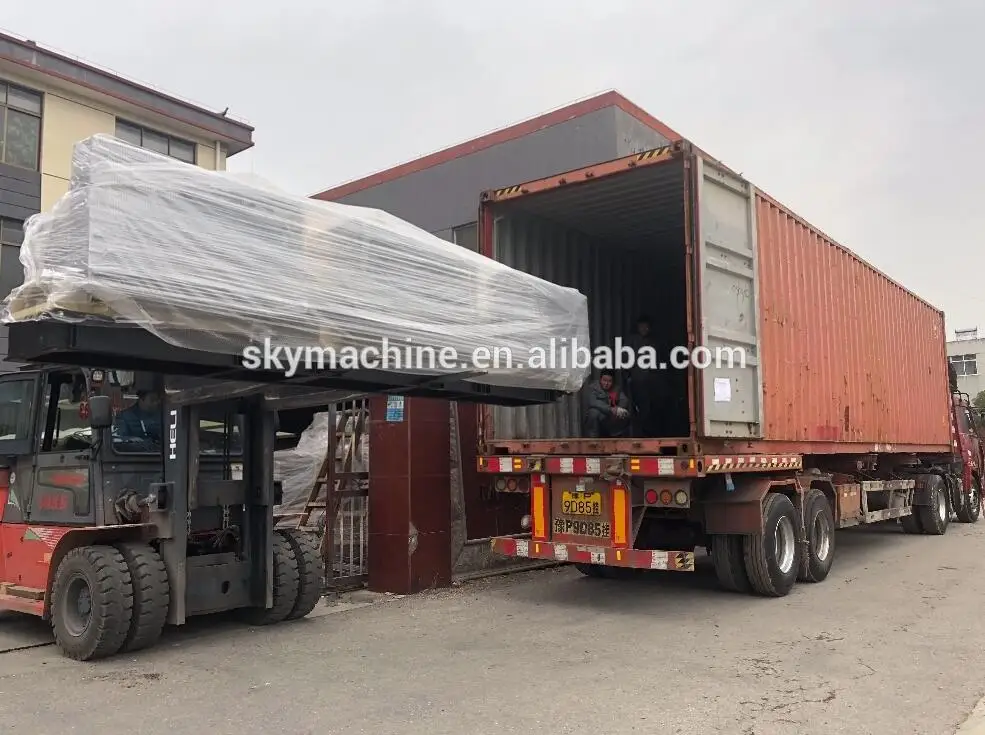

Packing&Shipping
After Sales Service
1.Installation, debug

After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange
seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated
producing capacity of the line.Time for installation and debug is 15-25 days.

2.Training

Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and
operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After
training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different
failures.

3.Quality guarantee

We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification
and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding
any aseptic.

4.After sales

1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some
failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange
technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of
technician.

2,After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at
favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's
demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not
solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost
treatment method of technician.
Company Introduction
FAQ
1.Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.

2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality
bottle making machinery partner,and we provide to customer same long warranty time and good after service.

3.How can I know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.

4.What certificates you can provide?
Our factory provide the CE,SGS,ISO,and according to some countries,we also can provide the PVOC, COC,SONCAP...etc.
