Good Price Fully Automatic Bottle Blow Molding Machine For PET Bottle in China

  • 1 - 1 Sets
    $42,000.00
  • >=2 Sets
    $40,000.00
Power:
27.5KW
Model Number:
SKY-6000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years, 12months
Packaging Type:
Bottles
Packaging Material:
Plastic
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
Sky Machine
Voltage:
380v
Application:
Beverage, Chemical, Food
Weight:
1500KG
Automatic Grade:
Automatic
Certification:
CE,ISO,SGS
Driven Type:
Hydraulic
Dimension(L*W*H):
1.8*3.2*1.9M
Applicable Industries:
Building Material Shops, Manufacturing Plant, Food & Beverage Factory
Key Selling Points:
Easy to Operate
Plastic Processed:
PET
Blow Moulding Type:
Stretch Blow Moulding
Max.mould thickness:
250mm
Control:
PLC
PLC brand:
MITSUBISHI
Name:
PET bottle blow molding machine
Usage:
Beverage Packaging
Bottle type:
PET Plastic Bottle
Product Certification certification
CE Certified.
Valid from 2018-04-03 until 2023-04-02
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden cases packing
Port
SHANGHAI
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

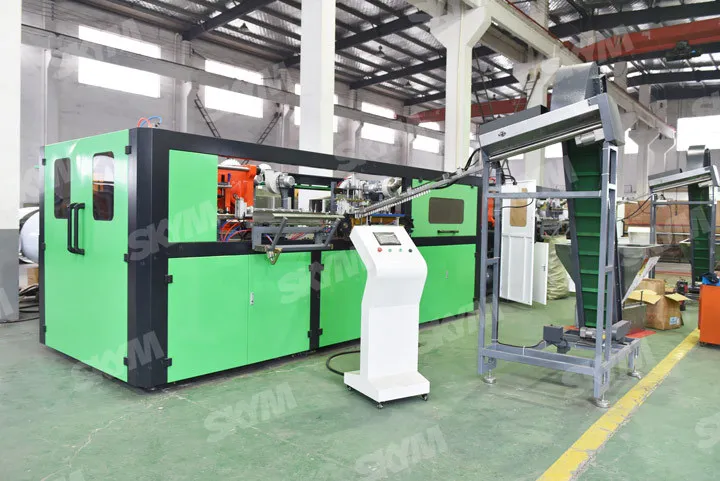

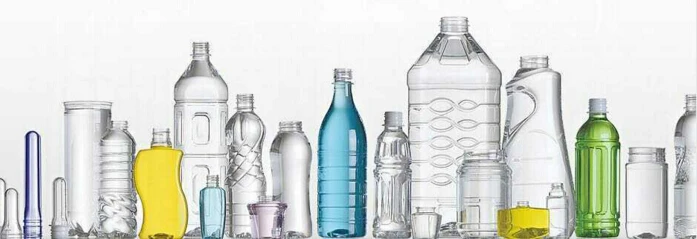

SKY-A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Features of main body:
1). Stable performance with advanced PLC.
2). Automatic preform conveyor to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mold.
9). Two ways of operating: Automatic and manual.
10). Safe, reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low cost\high efficiency\easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to install\test and start up.
14). Low rejection rate: Less than 0.2 percen.

Main Technical Data
Model
SKY-2000
SKY-3000
SKY-4000
SKY-6000
SKY-8000
Bottle Volume
0.05-2L
0.05-2L
0.05-2L
0.05-2L
0.05-2L
Bottle Diameter(mm)
20-100
20-100
20-100
≤90
≤90
Theoretical Output
2000pcs/h
3000pcs/h
4000pcs/h
6000pcs/h
8000pcs/h
Cavity
2Cav
3Cav
4Cav
6Cav
8Cav
Dimension
(L*W*H)
190*128*192cm
175*125*205cm
190*185*192cm
500*280*220cm
550*400*220cm
Weight
2000kg
1600kg
3600kg
4800kg
5800kg
Power
25kw
18kw
49kw
53kw
66kw
Main Technical Data
Model
SKY-12
SKY-8Y
SKY-SA4
SKY-5L
SKY-10L
Bottle Volume
10L-25L
0.01L-2L
0.01L-2.5L
0.01L-5L
5L-10L
Theoretical Output
90-180pcs/h
1200-1600pcs/h
2000pcs/h
300-800pcs/h
300-500pcs/h
Blower(L*W*H)
218*77*196cm
160*60*161cm
190*88*180cm
175*67*186cm
193*72*183cm
Blower/Weight
1000kg
500kg
1000kg
600kg
800kg
Heater(L*W*H)
237*68*135cm
187*63*145cm
190*66*160cm
187*63*145cm
187*63*145cm
Heater/Weight
380kg
250kg
380kg
250kg
250kg
Power
40kw
17.5kw
18kw
17.5kw
17.5kw
Certifications
Our Company
Our Service

1.Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.

2.Training
Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3.Quality guarantee
We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.

4.After sales
1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.


2,After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.

FAQ

1.Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.

2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.

3.How can i know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.

4.What certificates you can provide?
Our factory provide the CE,SGS,ISO,and according to some countries,we also can provide the PVOC, COC,SONCAP...etc.
