Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Food, Beverage, Medical, Chemical
Hotels, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops, Advertising Company
Key Selling Points:
Easy to Operate
Diameter of Bottle Body:
28 mm- 125mm
Length of Label:
30 mm - 250mm
Thickness of Label:
0.03 mm -0.13 mm
PVC / PET label
bottle labeling machine
20 Set/Sets per Month
Packaging & Delivery
1 - 1
To be negotiated
Usage Characteristic: The machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; It is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
Features: 1.Heavy-duty construction utilizes oversized drive components combined with an aluminum and stainless steel base frame for years of dependable service. 2.Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equipment speeds. 3.Advanced high torque micro-stepping driven applicators include ratio-offset and speed-following capability for accurate and reliable application of a wide variety of label materials.

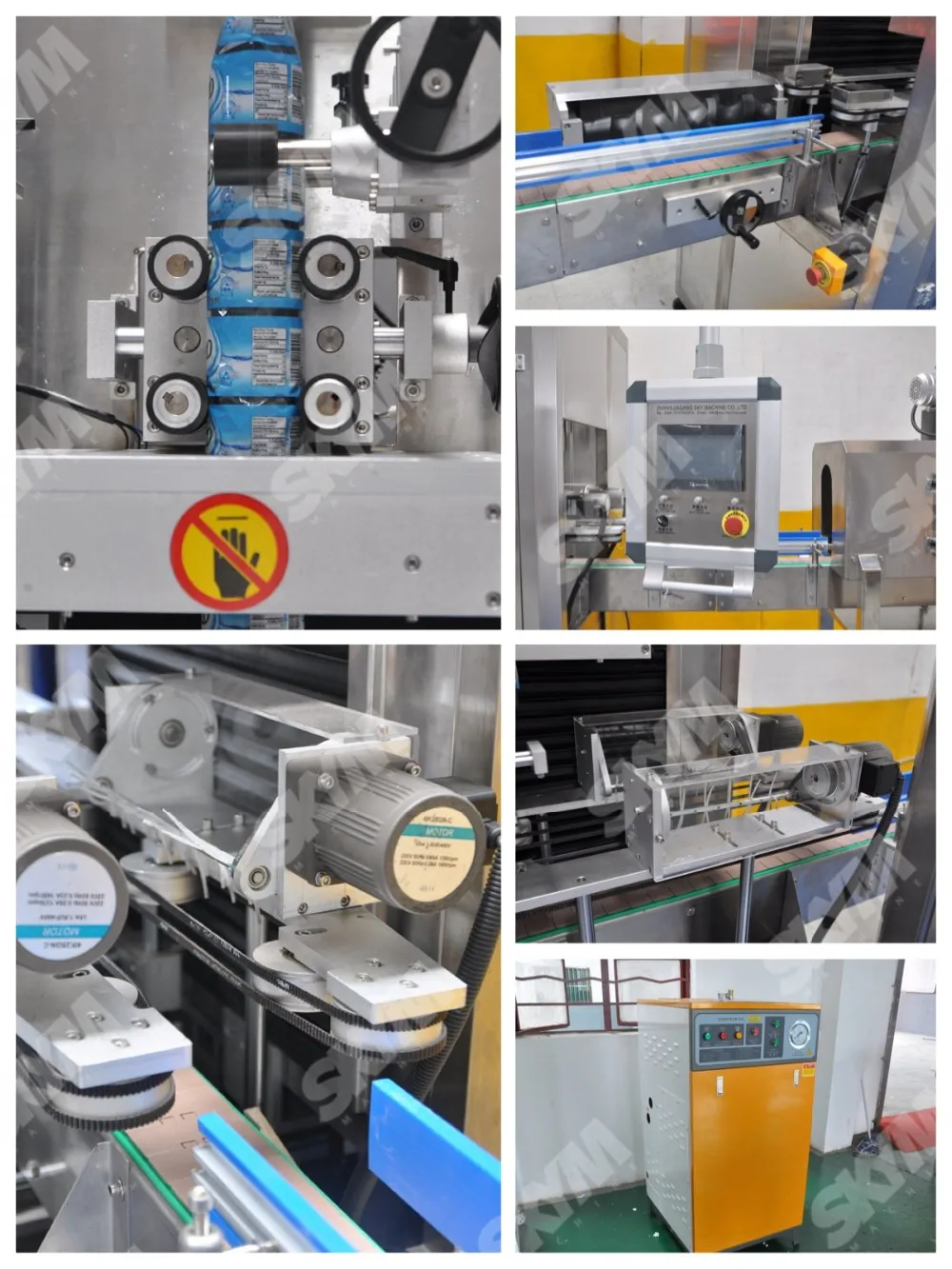

All-cover type stainless steel host machine: the whole machine is waterproof as well as rustless. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life. Single positioning centre guide pillar: a more stable for label delivery. Synchronous bottle divider: a more stable transmission for bottle. Bottom set of label brush:a more precision for casting label. Label-controlling electric-eye shelf:unique combination of tail and electric-eye to improve the precision for cutting off The membrane materials. Push-button control cabinet: a more humanized operation. Independent feeding material shelf: the position of the material shelf is optional at will.
Electrical Appliance Configuration Specification: It adopts PLC programmable controller,imported servo motor,servo driver,frequency converter and transducer; besides,it dopts The positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types: Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.
∮3, 380/220 VAC
Dimension of Host Machine
L2100mm × W850mm × H2000mm
Applicable Diameter Container
φ28 mm ~ φ120 mm
Applicable Label Length
Applicable Thickness Label
Applicable Inner Diameter of Paper Tube
1.Installation, debug After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.
2.Training Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality guarantee We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.
4.After sales 1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
2,After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
1.Can your factory provide he whole plant from A to Z? Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.
2.Are all machinery your factory made? Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.
3.How can i know the machinery quality before i order? First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.
4.What certificates you can provide? Our factory provide the CE,SGS,ISO,and according to some countries,we also can provide the PVOC, COC,SONCAP...etc.
