QGF-600 Fully Automatic 5 Gallon / 20L Barrel washing filling capping package / filling line / machine

  • 1 - 1 Sets
    $32,000.00
  • >=2 Sets
    $30,000.00
Power:
10.6KW
Model Number:
QGF-600
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
Packaging Type:
Barrel, Bottles, Cans, Gallons
Packaging Material:
Plastic
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
Sky Machine
Voltage:
220V/380V
Application:
Beverage, Chemical, Food
Weight:
800kg
Automatic Grade:
Automatic
Certification:
CE,ISO,SGS
Driven Type:
Hydraulic
Dimension(L*W*H):
by order
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops
Key Selling Points:
High-accuracy
Bottle size:
3gallon~5gallon
Capacity:
100BPH-2000BPH
Control:
PLC
Processing:
Washing,Filling,Capping
Processing Type:
Water
Appliacation Bottle:
Plastic Bottle
Main Material:
SUS304/SUS316
Export Market:
Global
Product name:
5 Gal Water Filling Machine
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden cases
Port
SHANGHAI
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

Introduction:
This filling line specially for 3-5gallons barreled drink water, with type QGF-100, QGF-240, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200, It intergrates bottle washing, filling and capping into one unit, In order to achieve the purpose of washing and sterilizing, The washing machine use multi-washing liquid spray and-thimerosal spray, This thimerosal can be used circularly, The capping machine can cap barrel automatically , this line equips with water spraying device in order to ensure those caps sterilizer and clean. it also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation, it is a new kind of barreeled water auto-production line, which intergrates mechanism, electricity and pneumatics technologies together .

Application:

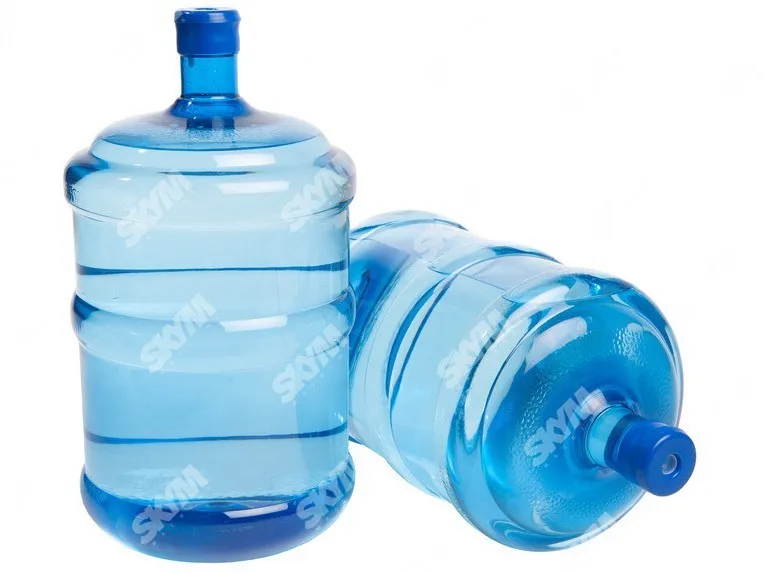

It is especially used for 3/5 Gallon barrel pure water washing, filling, capping production line.


Characteristics:
The parts with touch water adopt high-quality stainless steel. The cylinder gear runs smoothly and the fixed position is correct. It adopts inserting-type washing technology to remove washing blind angle.


Product Description:
1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine


Main technical specifications:

Model
QGF-100
QGF-300
QGF-450
QGF-600
QGF-900
Filling heads
1
2
3
5
6
Volume(L)
18.9
18.9
18.9
18.9
18.9
Capacity(b/h)
100
300
450
600
900
Gas consumption (m3/min)
0.37
0.6
0.8
1
1.5
Moto power (kw)
1.38
3.8
5.6
7.5
9.75
Weight(kg)
680
1500
2100
3000
3500
Size(W*L*H)(m)
0.5*4.0*1.5
0.9*4.0*1.5
1.3*4.0*1.5
1.8*4.0*1.5
2.4*4.0*1.5

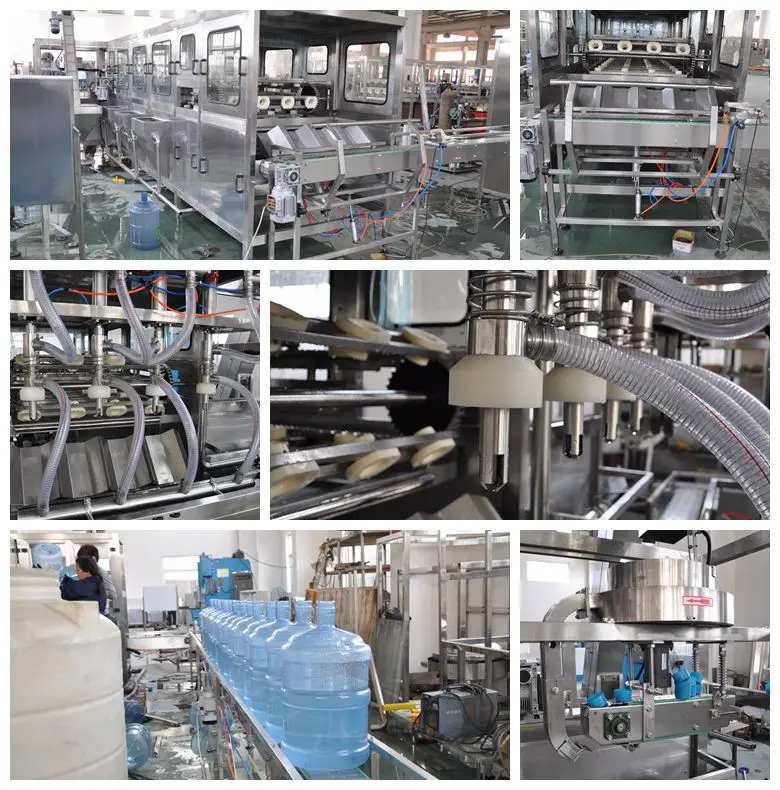

Detailed Images
Related Products
Certifications
Our Company
Our Service

1.Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.


2.Training
Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.


3.Quality guarantee
We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.

4.After sales
1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.


2,After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.

FAQ

1.Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.


2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.


3.How can i know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.


4.What certificates you can provide?
Our factory provide the CE,SGS,ISO,and according to some countries,we also can provide the PVOC, COC,SONCAP...etc.
