3000BPH 500ML Compact Stable Power Saving Automatic Bottle Blowing Molding Making Machine Making Machinery

  • >=1 Sets
    $28,000.00
Production Capacity (BPH):
6000bph 4000bph 3000bph 2000bph
Bottle Volume:
500ml
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Place of Origin:
Jiangsu, China
Brand Name:
SKY
Application:
Bottle
Plastic Processed:
PET
Condition:
New
Dimension(L*W*H):
1750*1250*2000
Year:
2019
Certification:
CE, ISO
Voltage:
380V
Blow Moulding Type:
Stretch Blow Moulding
Suitable bottle1:
Water bottle
Suitable bottle2:
Oil bottle
Suitable bottle3:
Cosmetic bottle
Suitable bottle4:
Beverage bottle
Bottle volume:
200ml, 300ml, 500ml, 1000ml,2000ml
Cavity:
2/4/6 Cavity
Color:
Customer Customized
Advantages:
High Speed High Efficiency
Cylinder:
Festo Germany
PLC:
SIMENS(Germany)
Automatic:
Yes
Model Number:
SKY-3000
Power(W):
15kw
Weight:
1600KG
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
Non-fumigation wooden case
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated

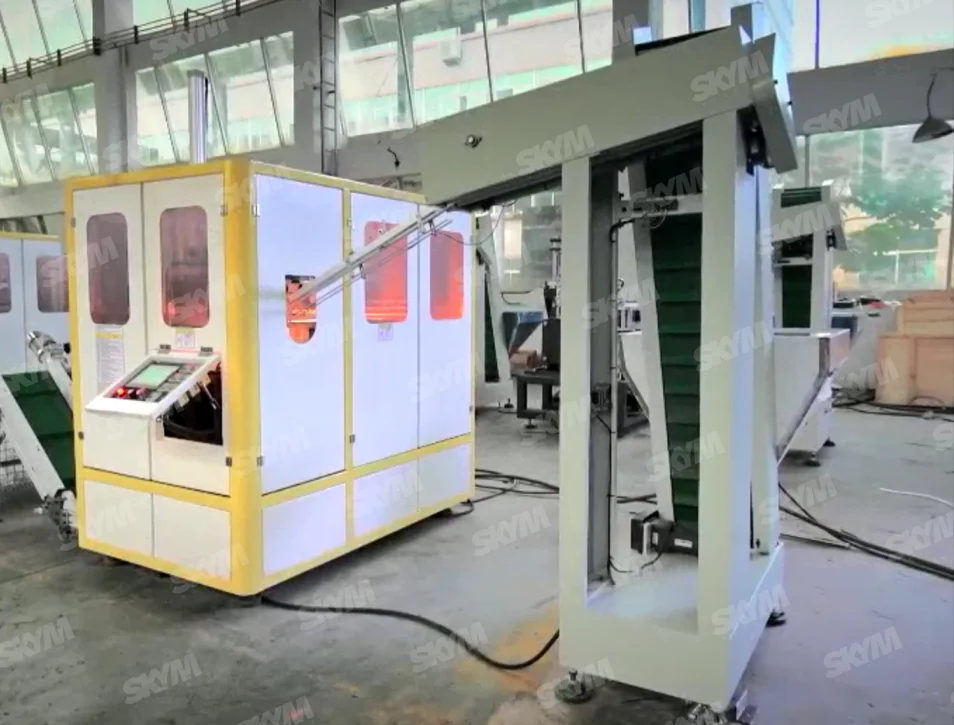

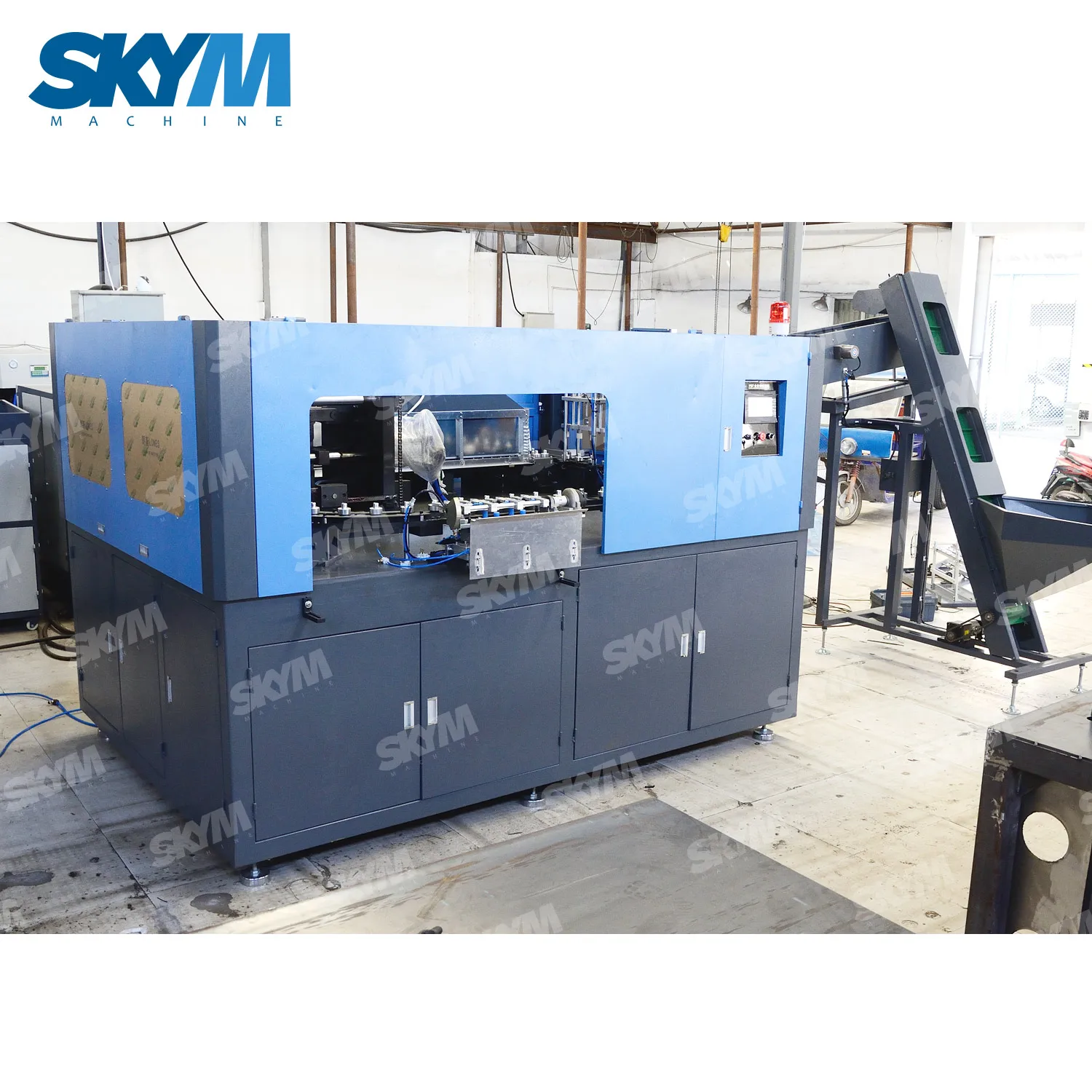

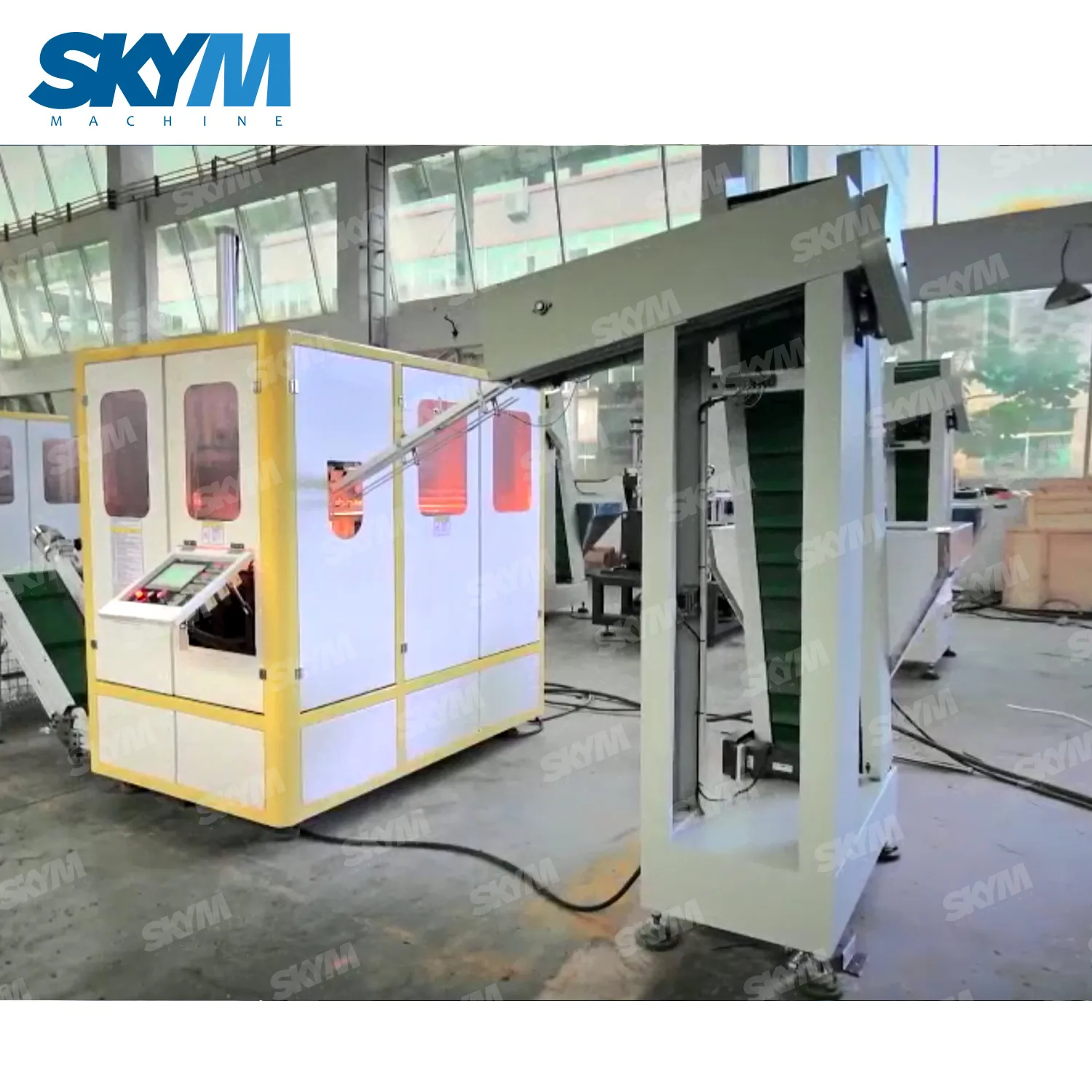

SKY series automatic blowing machine adopts our most advanced blowing technologies. This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.



Function and advantages

Ø Man-machine Interface control, easy to operate

Ø Automatic preform loading and unscrambling

Ø Preform hopper

Ø Stable preform alignment, loading preforms according to capacity

Ø Close structure, low contamination

Ø Well preform heating system

Ø Stable rotating system

Ø Preforms are evenly heated, and easy to blow

Ø Low energy consumption, heating capacity is adjustable

Ø Recycling air cooling system in oven (option)

Ø Heating system is a mutual feedback and closed loop system, can works in a constant power output, without being affected by voltage fluctuation.




Automatic Bottle Blower Model List

Model

Bottle Volume

Theoretical Output

Blower(L*W*H)

Blower/Weight

Heater(L*W*H)

Power

SKY-12

10L-25L

90-180pcs/h

218*77*196cm

1000kg

237*68*135cm

40kw

SKY-8Y

0.01L-2L

1200-1600pcs/h

160*60*161cm

500kg

187*63*145cm

17.5kw

SKY-SA4

0.01L-2.5L

2000pcs/h

190*88*180cm

1000kg

190*66*160cm

18kw

SKY-5L

0.01L-5L

300-800pcs/h

175*67*186cm

600kg

187*63*145cm

17.5kw

SKY-10L

5L-10L

300-500pcs/h

193*72*183cm

800kg

187*63*145cm

17.5kw





Semi Automatic Bottle Blower Model List

Model

Bottle Volume

Bottle Diameter

Theoretical Output

Cavity

Dimension(L*W*H)

Power

SKY-2000

0.05-2L

20mm-100mm

2000pcs/h

2Cav

190*128*192cm

25kw

SKY-3000

0.05-1.5L

20mm-100mm

3000pcs/h

3Cav

175*125*205cm

8kw

SKY-4000

0.05-2L

20mm-100mm

4000pcs/h

4Cav

190*185*192cm

49kw

SKY-6000

0.05-2L

≤90mm

6000pcs/h

6Cav

500*280*220cm

53kw

SKY-8000

0.05-2L

≤90mm

8000pcs/h

8Cav

550*400*220cm

66kw



Related Products
42 (2).jpg 1.jpg14.jpg  1.jpg44 (2).jpg 16.jpg



.jpg

FAQ

A: Are you factory?How many workers do you have?

B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.

A: What about after sale service?

B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.

A: What about installation?

B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.

A: What do we do if we encounter problem about the machine ?

B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).

A: How can you control the quality and delivery?

B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .

A: What kind of payment do you have have?

B: 1. 30% as deposit by T/T and 70% as balance by T/T.
    2. Alibaba trading assurance
EXW, FOB, CFR, CIF
